Stokta

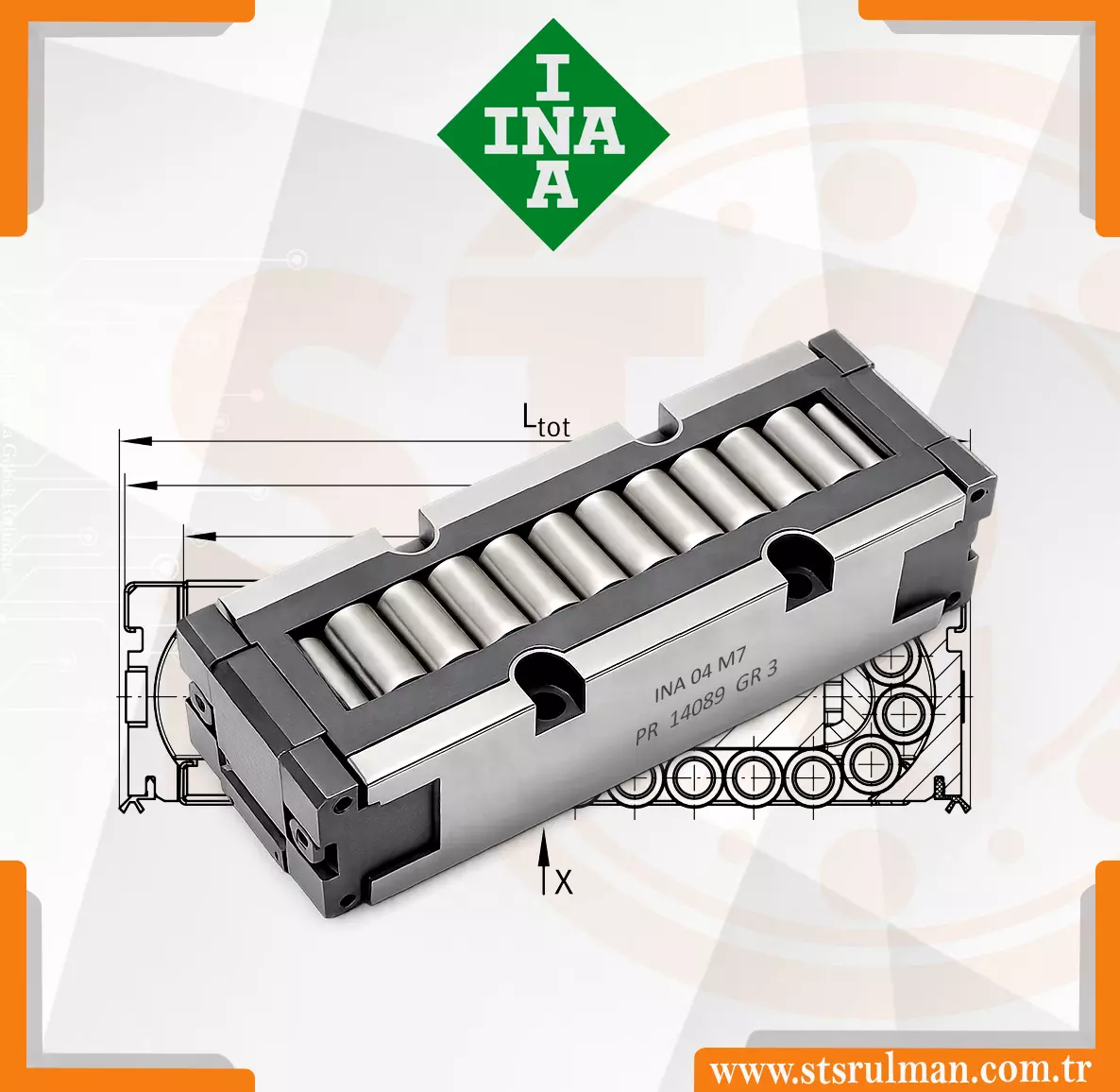

PR 14089 İNA RULMAN

Model  :   PR 14089

Ürünün teknik bilgileri aşağıda yer almaktadır.

Ürün Kodu :RUS PR 14089
Toplam Uzunlu : L tot143 mm
Gövde Uzunluğu :L1121.5 mm
Genişlik: B50.8mm
Yükseklik : H38.1 mm
Dinamik Yük : C205.000 N
Sitatik Yük : C0354.500 N
Civata Bağlantı Ölçüsü :  JL51 mm
Ürün Ağırlığı:1.727 kg

Stok Kodu: RUS PR 14089 İNA RULMAN_ Kategori: ,

Açıklama

Main Dimensions & Performance Data

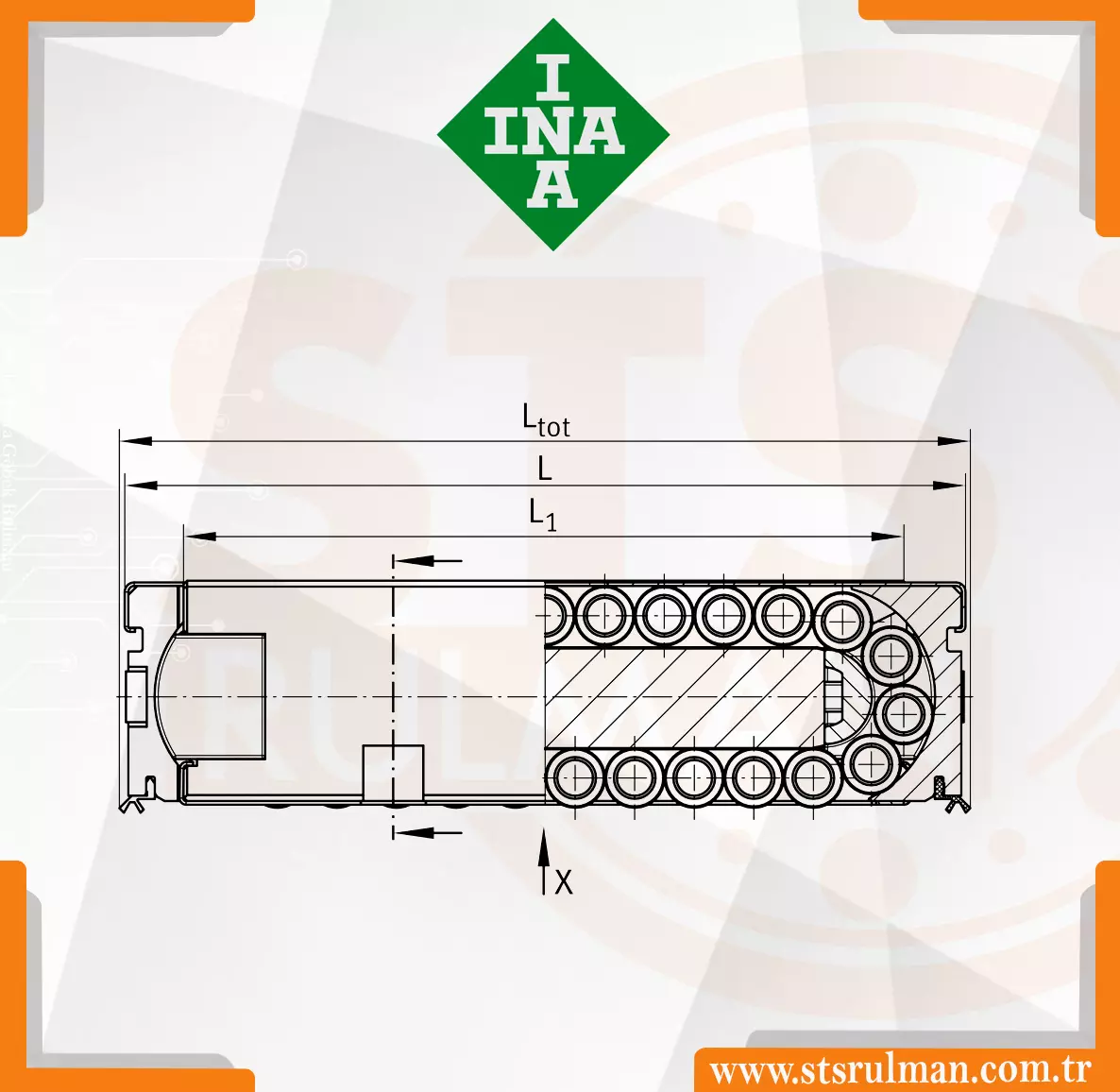

Ltot
143 mm
Length total
B
50.8 mm
Width
H
38.1 mm
Height
C
205,000 N
Load capacity Dynamic
C0
354,000 N
Load capacity static
≈m
1.727 kg
Weight

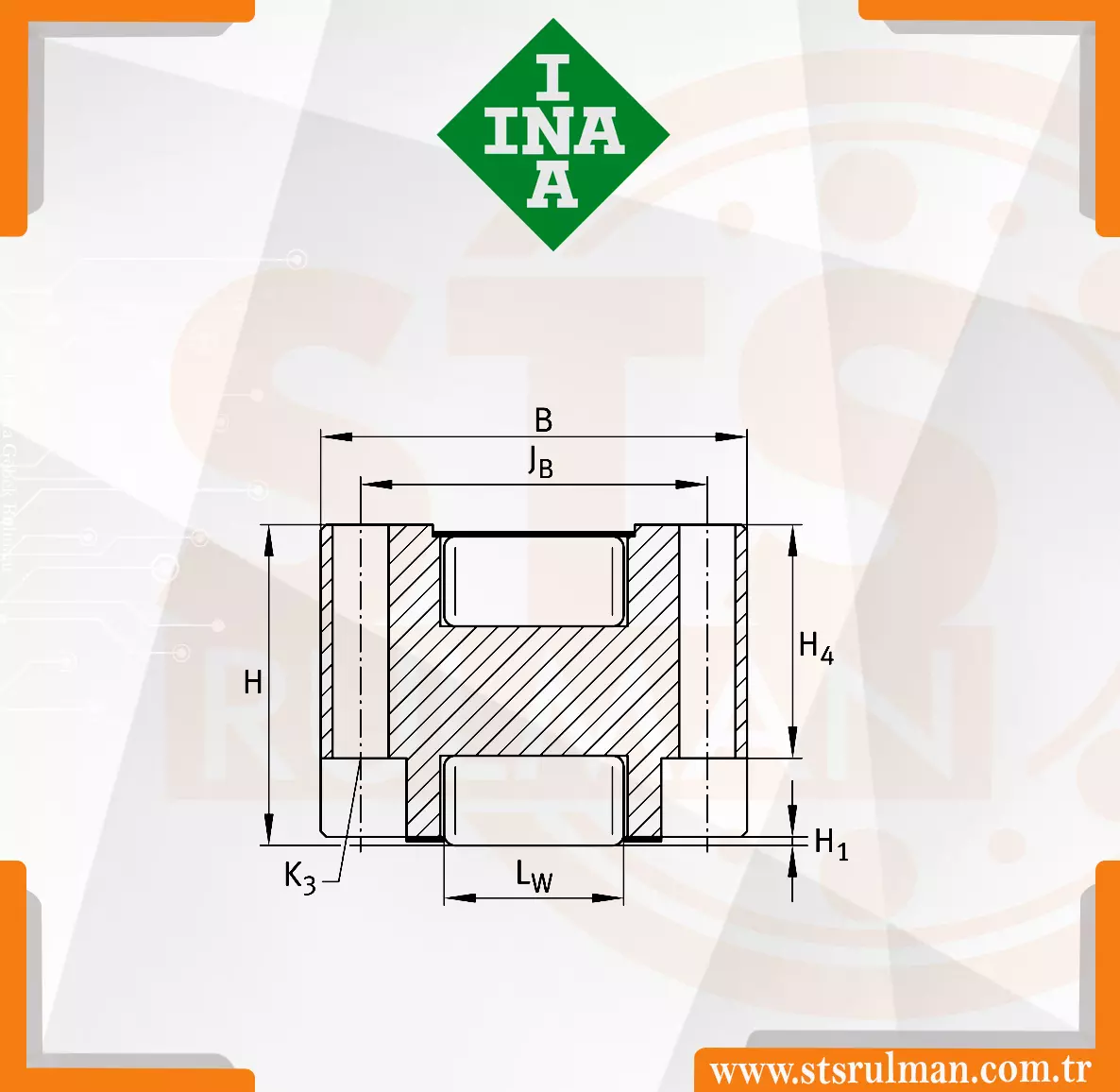

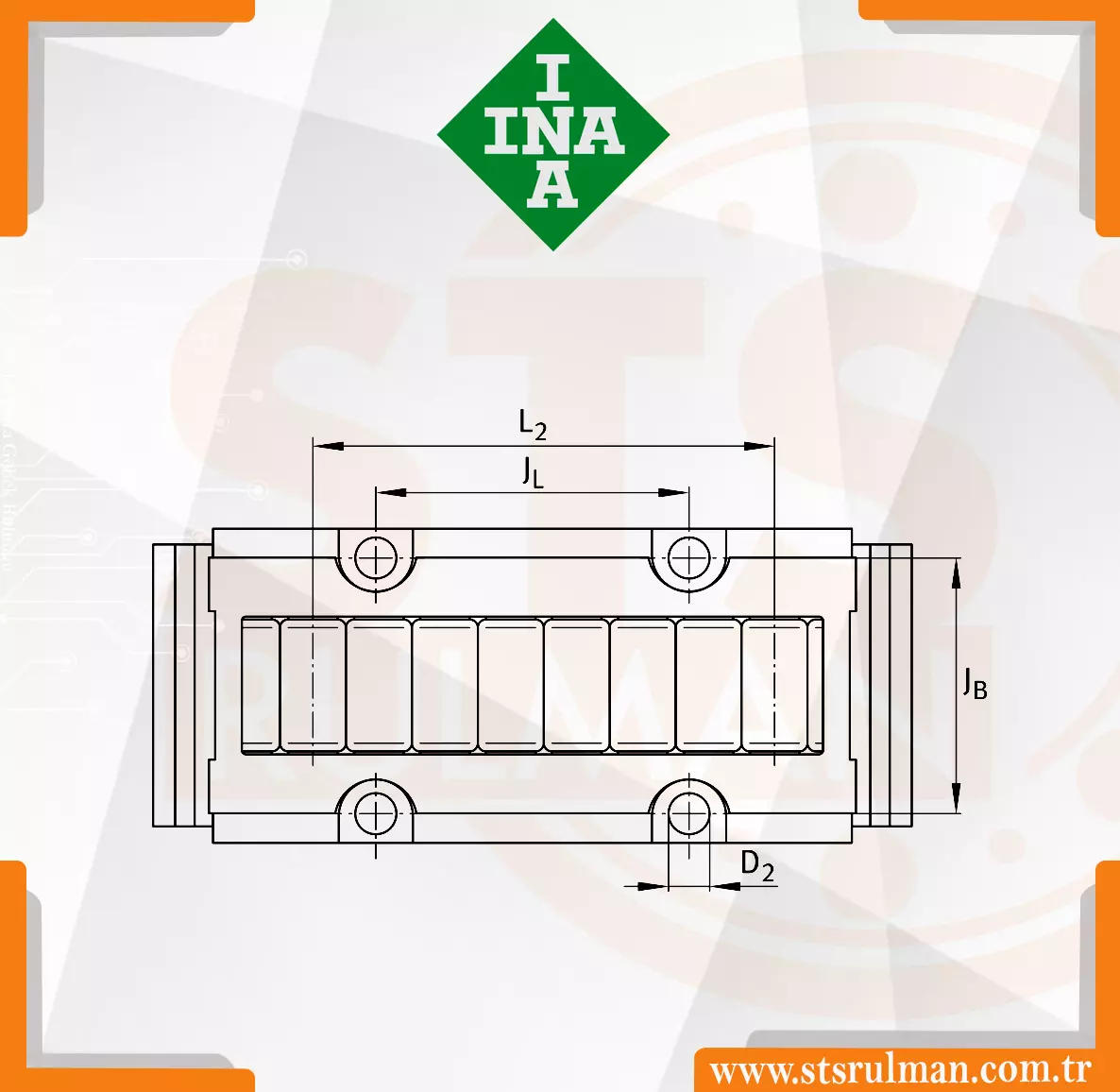

Mounting dimensions
L1
121.5 mm
JB
41 mm
Mounting Dimension
Tol JB
± 0.1 mm
Tolerance
JL
51 mm
Mounting Dimension
Tol JL
± 0.1 mm
Tolerance
H1
0.1 mm
L2
90 mm
LW
20 mm
H4
27.7 mm
K3
M5
Size thread K3 1
K3 MA
10 Nm
Tightening Torque fixing screws
D2
