Stokta

RUS 26102 GR3/10-15 INA RULMAN

₺ 17.676,29

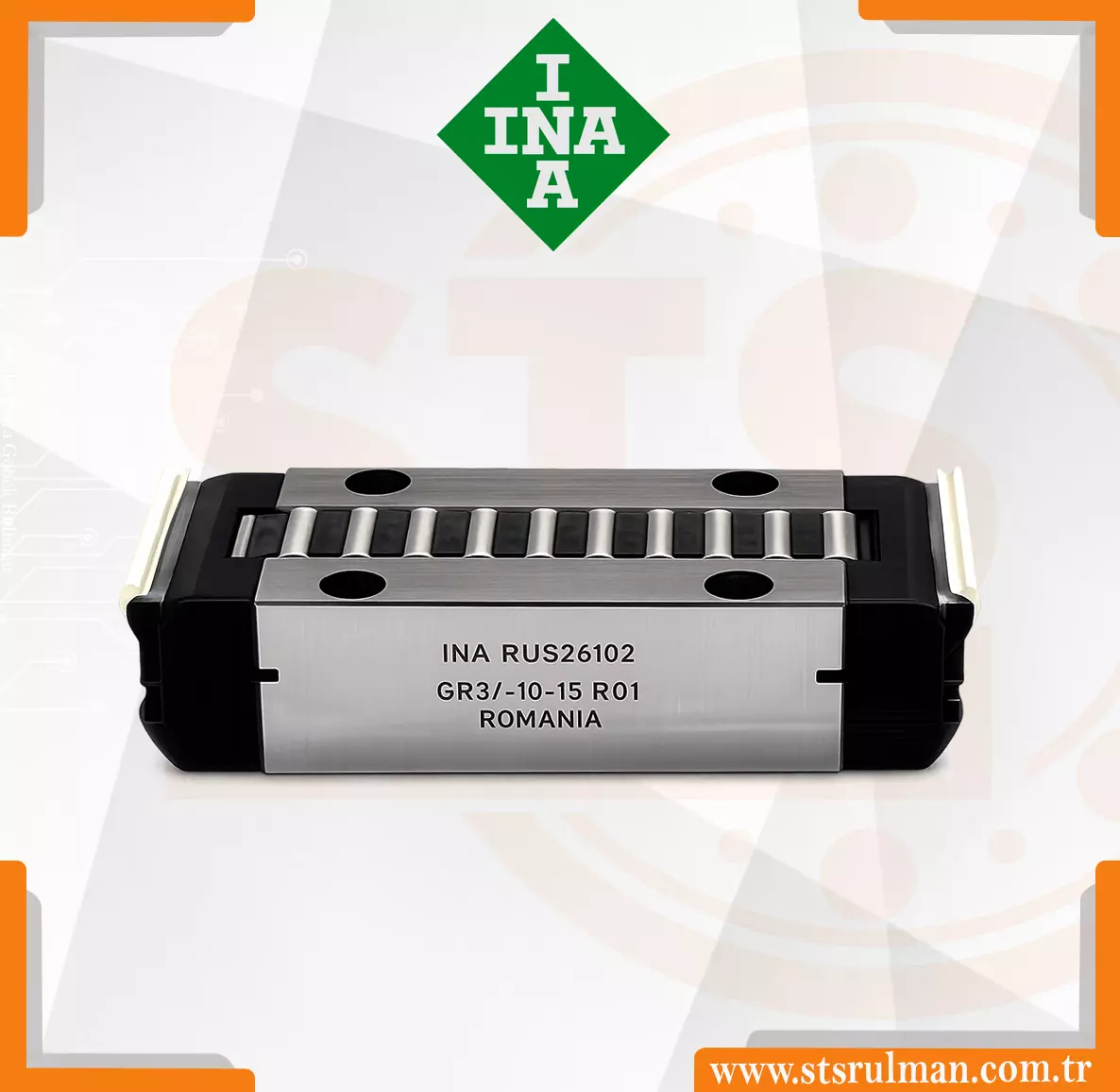

Model  :  RUS 26102 GR3/10-15 (Borverk Rulmanı)

Ürünün teknik bilgileri aşağıda yer almaktadır.

Ürün Kodu :RUS 26102 GR3

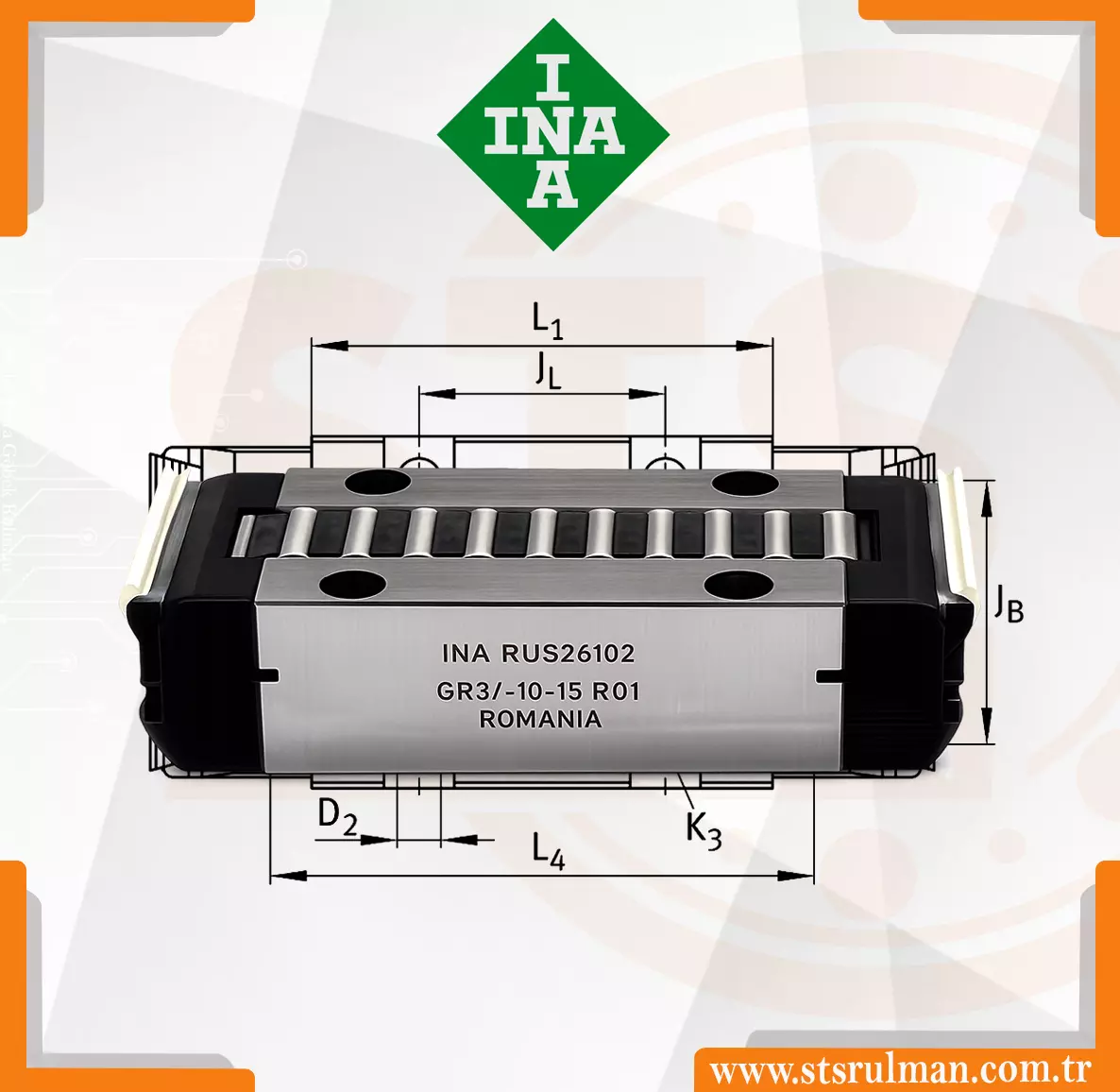

Toplam Uzunlu  : L tot106 mm
Gövde Uzunluğu :  L102.4 mm

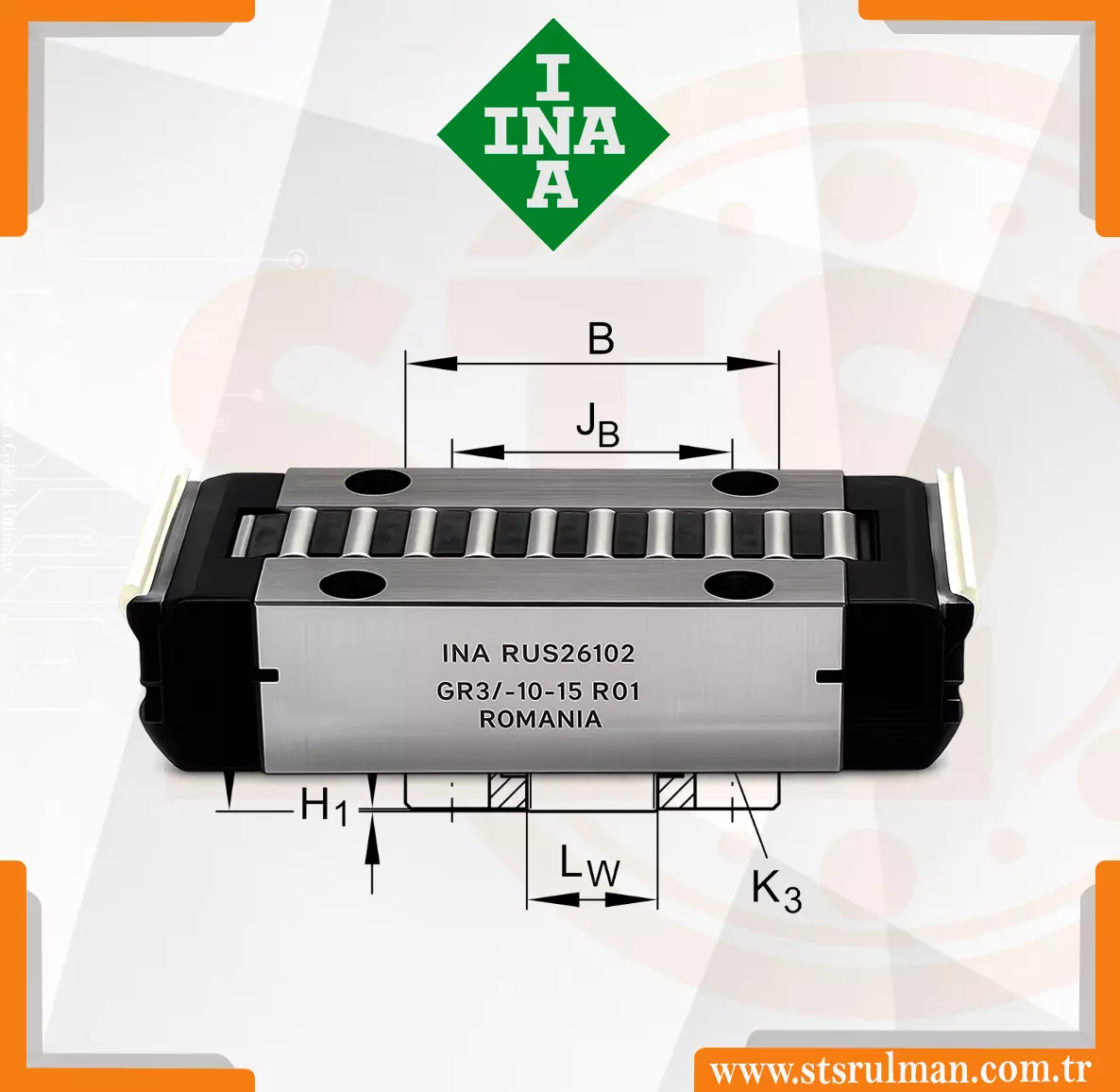

Genişlik :  B40 mm
Yükseklik  :  H26 mm
Dinamik Yük  : C95.000 N
Sitatik Yük :  C078.000 N
Civata Bağlantı Ölçüsü :  JL44 mm
Ürün Ağırlığı  :0.600 kg

Stokta

Stok Kodu: RUS 26102 GR3/10-15 Kategori: , ,
