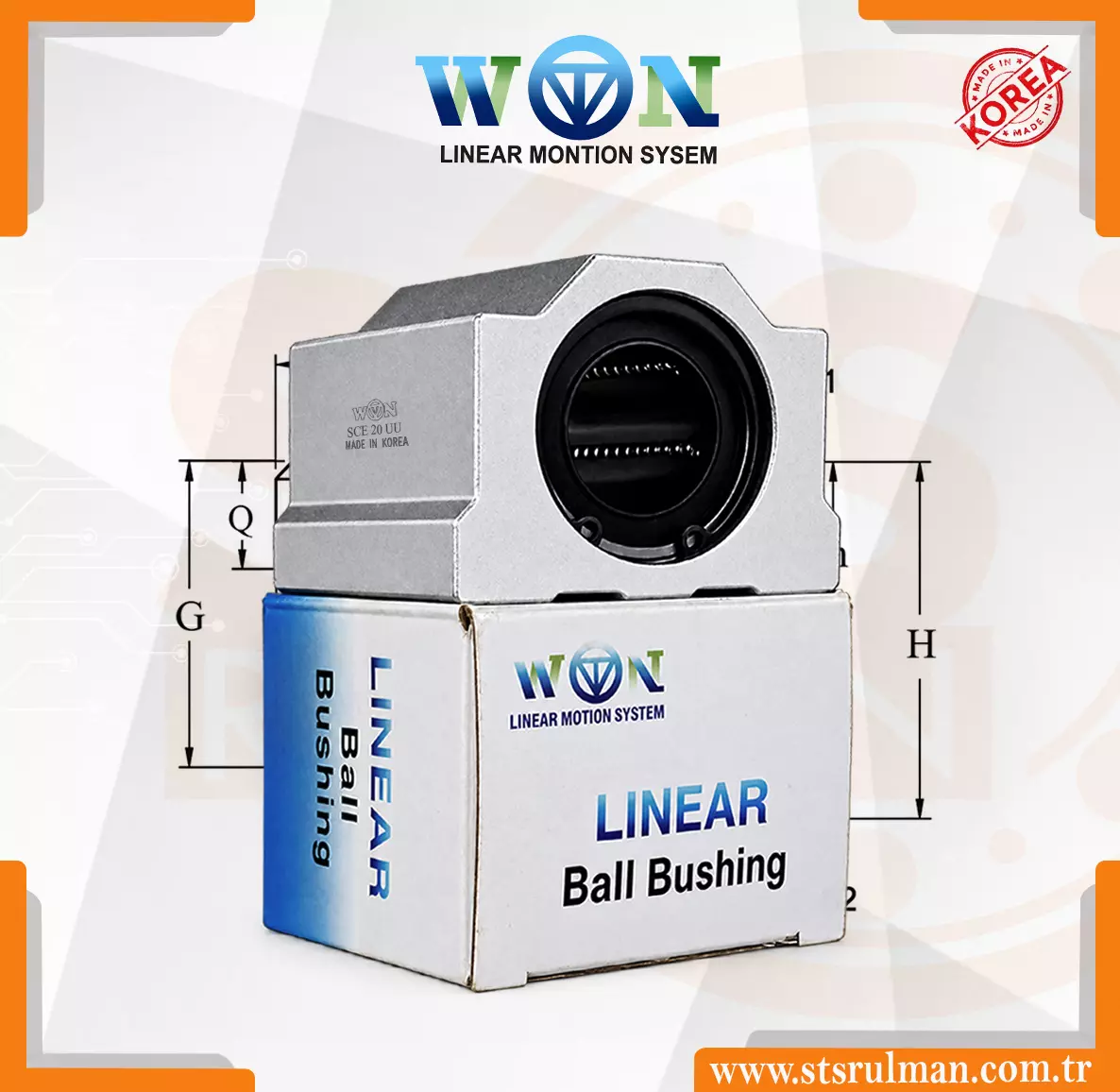

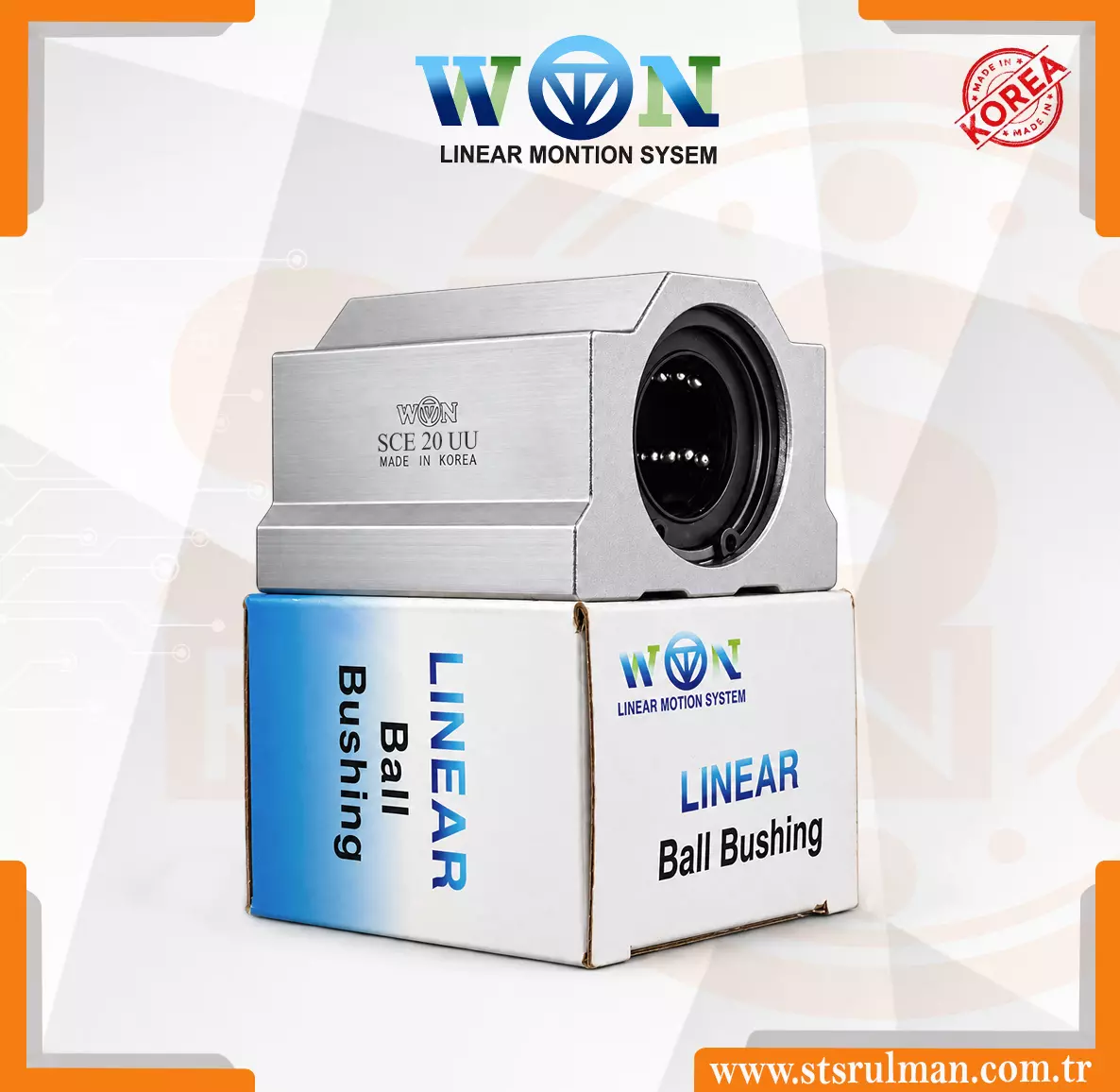

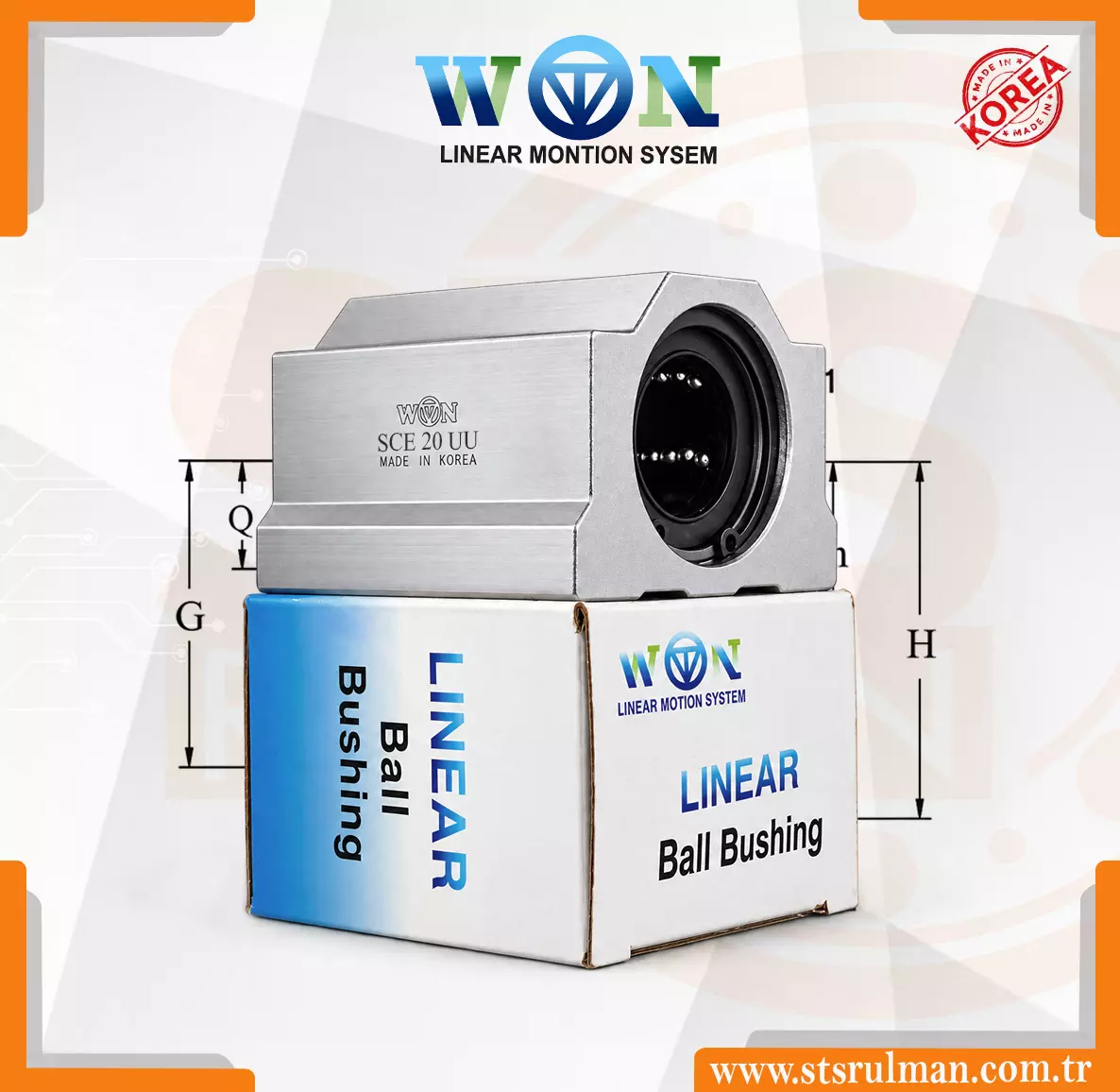

SCE 20 UU WON Lineer Rulman

Name: SCE 20 UU WON Lineer Rulman
SKU: SCE 20 UU WON Lineer Rulman ( Üst Kalite )
Price: 16.00 USD
Availability: InStock

₺ 800,00

KDV Dahil: ₺ 960,00

Ölçü : 20 mm

Ürünün teknik bilgileri aşağıda yer almaktadır.

Stokta

Stok Kodu: SCE 20 UU WON Lineer Rulman ( Üst Kalite ) Kategori: Lineer Arabalar, Online Satış, SCE UU (Kısa Tip), SCE UU Serisi

Açıklama

WON SCE Serisi – LM Genel Geçme Tipi Teknik Ölçü Tablosu
Boyutlar: mm \| Yük değerleri: kgf \| 1 N = 0,102 kgf
Ürün Kodu	Kütle (g)	Mil Çapı Ø (mm)	h	E	W	L	H2	G	T	B	C	K	S1	S2	Q	Lineer Rulman No.	Dinamik Yük C (kgf)	Statik Yük C0 (kgf)
SCE 8 UU WON	52	8,	11,	17,	34,	30,	22,	18,	6,	24,	18,	5,	M4	3,4	8,	LM 8 UU	28	40
SCE 10 UU WON	92	10,	13,	20,	40,	35,	26,	21,	8,	28,	21,	6,	M5	4,3	12,	LM 10 UU	38	56
SCE 12 UU WON	102	12,	15,	21,	42,	36,	28,	25,	8,	30,5	26,	5,75	M5	4,3	12,	LM 12 UU	42	60
SCE 13 UU WON	120	13,	15,	22,	44,	39,	30,	24,5	8,	33,	26,	5,5	M5	4,3	12,	LM 13 UU	52	80
SCE 16 UU WON	200	16,	19,	25,	50,	44,	38,5	32,5	9,	36,	34,	7,	M5	4,3	12,	LM 16 UU	79	120
SCE 20 UU WON	255	20,	21,	27,	54,	50,	41,	35,	11,	40,	40,	7,	M6	5,2	12,	LM 20 UU	90	140
SCE 25 UU WON	600	25,	26,	38,	76,	67,	51,5	42,	12,	54,	50,	11,	M8	7,	18,	LM 25 UU	100	160
SCE 30 UU WON	735	30,	30,	39,	78,	72,	59,5	49,	15,	58,	58,	10,	M8	7,	18,	LM 30 UU	160	280
SCE 35 UU WON	1.100	35,	34,	45,	90,	80,	68,	54,	18,	70,	60,	10,	M8	7,	18,	LM 35 UU	170	320
SCE 40 UU WON	1.590	40,	40,	51,	102,	90,	78,	62,	20,	80,	60,	11,	M10	8,7	25,	LM 40 UU	220	410
SCE 50 UU WON	3.340	50,	52,	61,	122,	110,	102,	80,	25,	100,	80,	11,	M10	8,7	25,	LM 50 UU	390	810
SCE 60 UU WON	4.270	60,	58,	66,	132,	122,	144,	94,	30,	108,	90,	12,	M12	10,7	25,	LM 60 UU	480	1.020
