Stokta

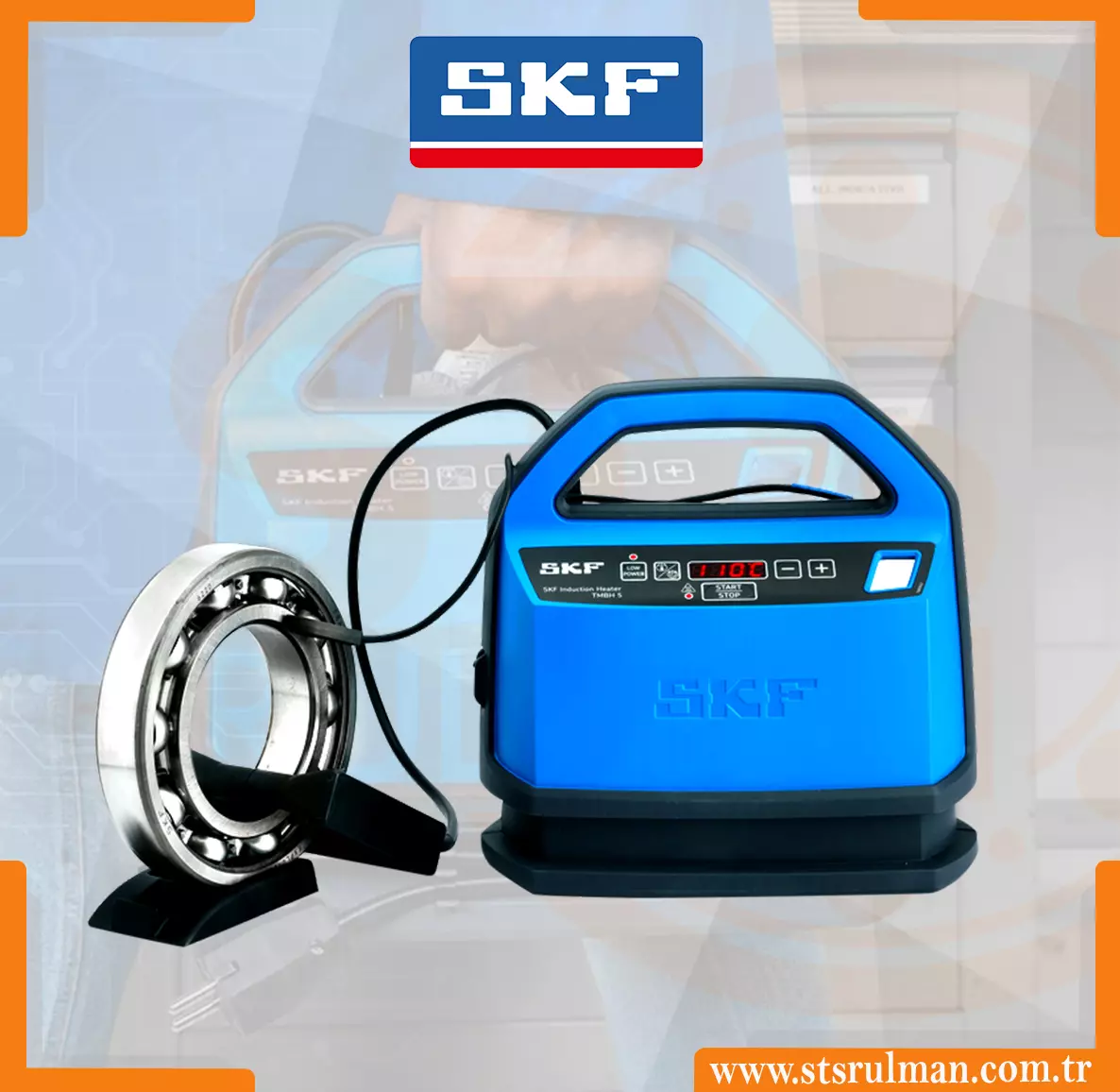

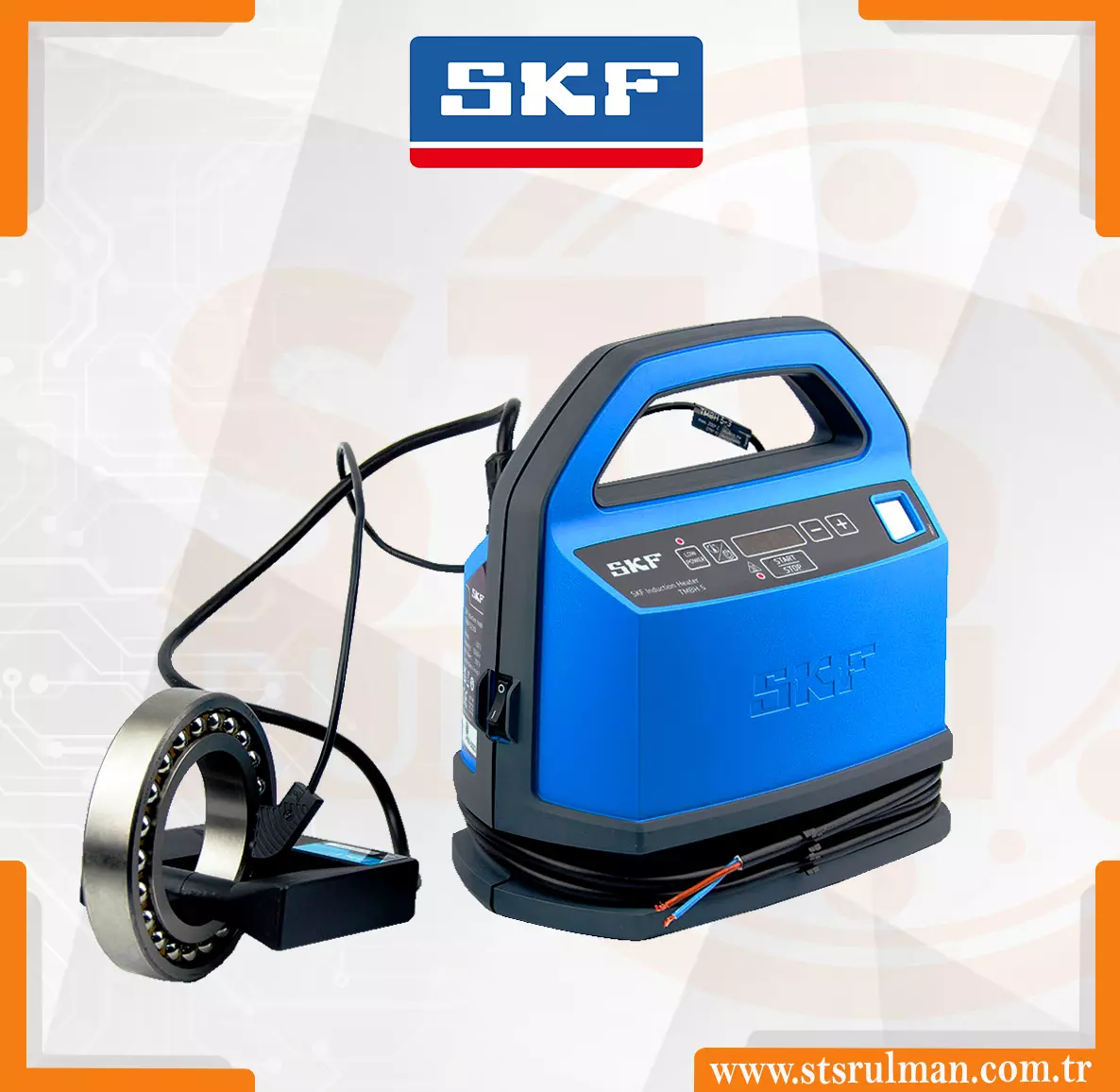

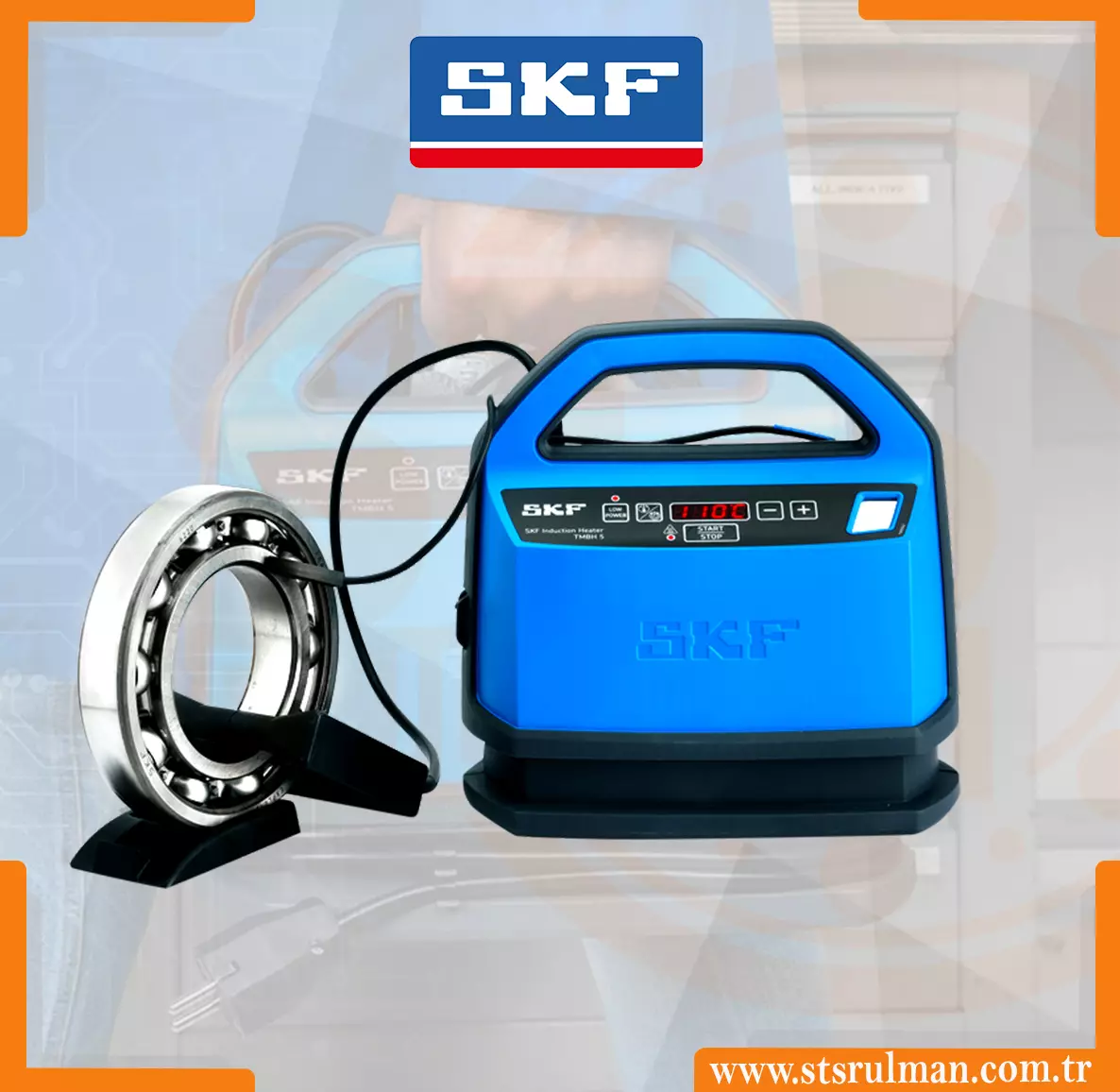

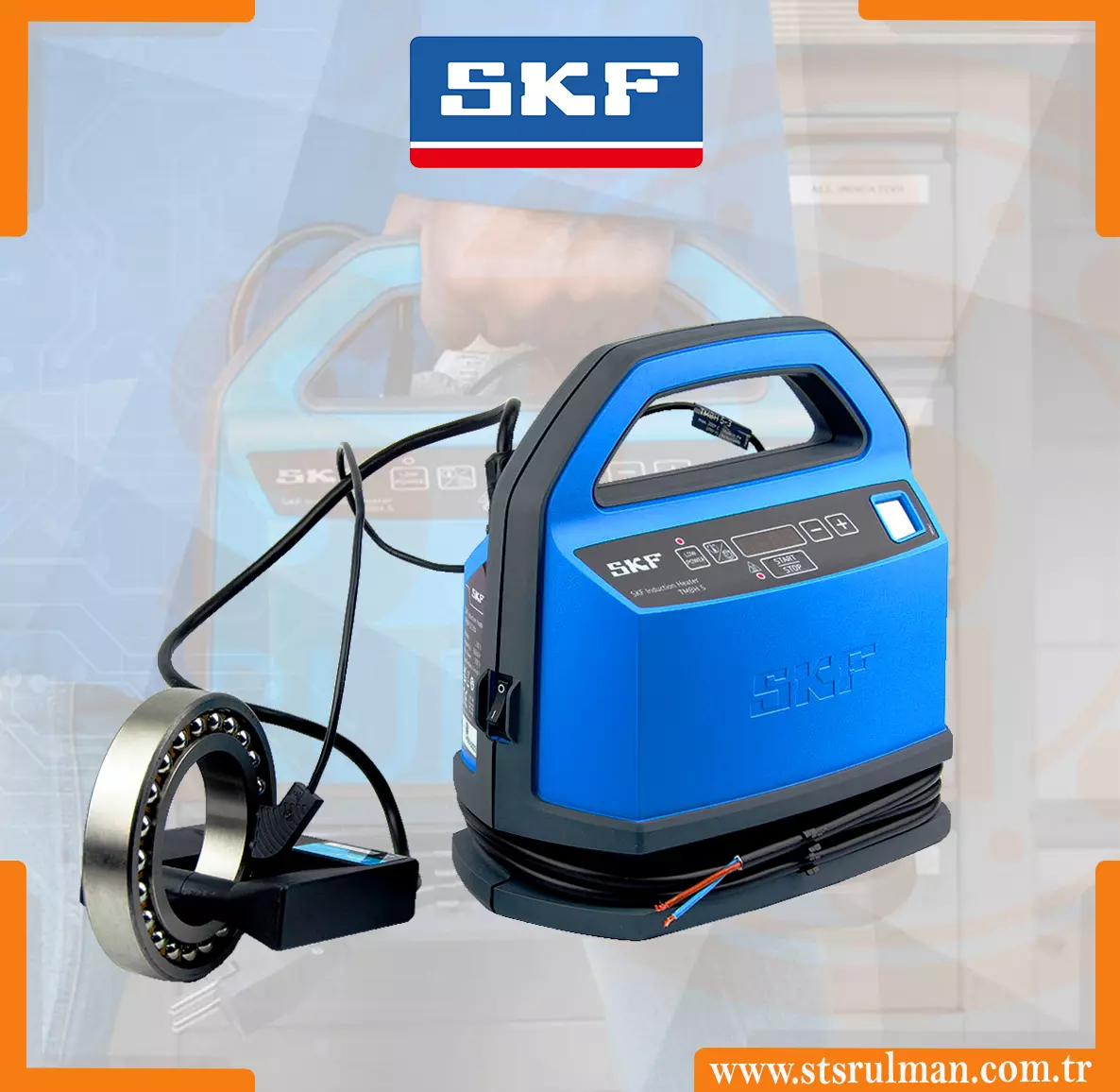

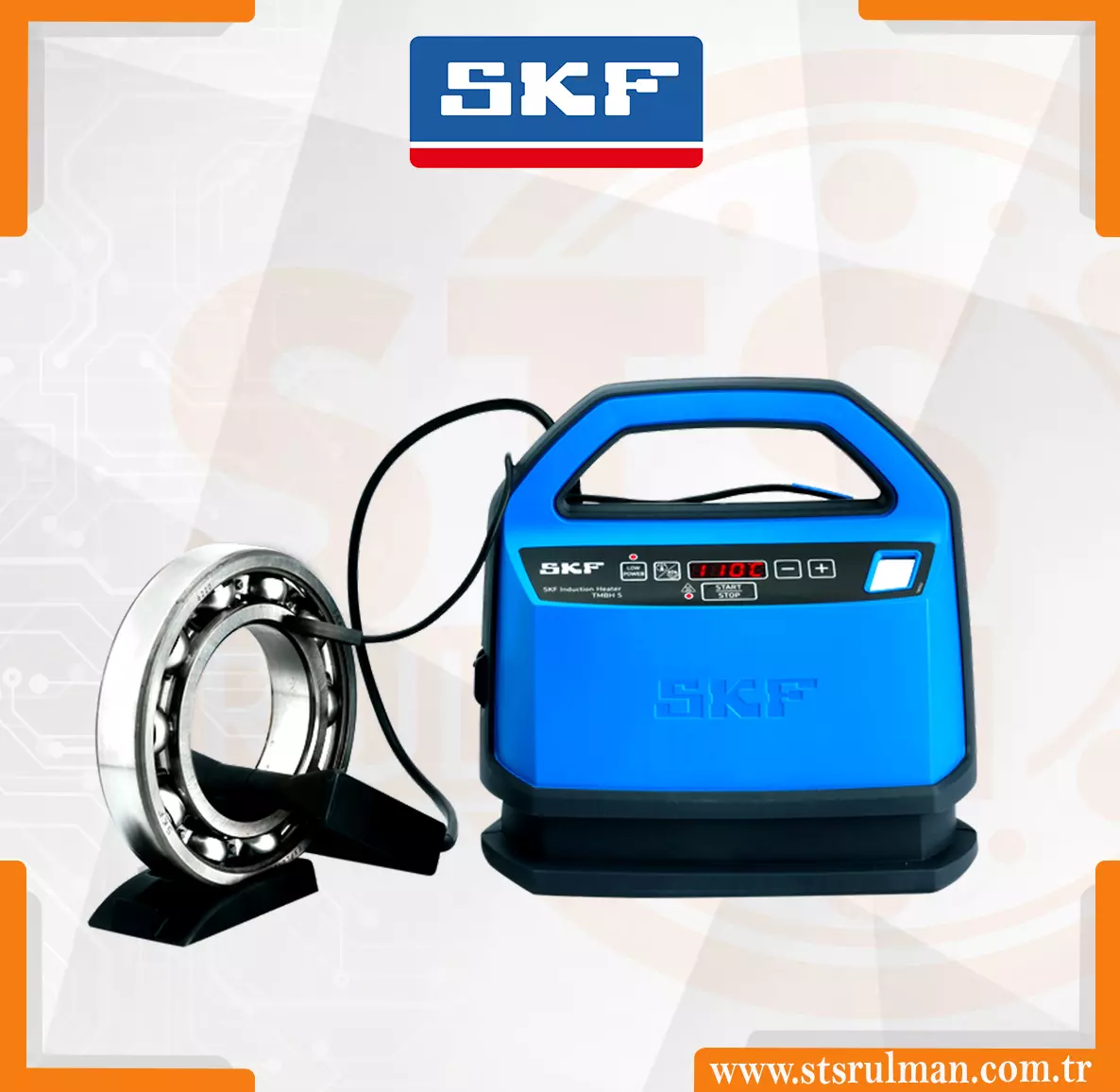

TMBH 5/230 V SKF İndüksiyon Rulman Montaj Cihazı

Model :  TMBH 5/230 V

Minimum Delik Çapı20 mm
 Maksimum Dış Çap500 mm
Maksimum Genişlik50 mm
Maksimum Rulman Ağırlığı5 kg /
 Voltaj230 V / 60 HZ
Sıcaklık Kontrolü40-200°C
Ürün Ağırlığı5.00 Kg

Stok Kodu: TMBH 5/230 V SKF İndüksiyon Rulman Montaj Cihazı Kategori: , ,

Açıklama

ÖzellikDeğer
Maks. rulman ağırlığı5 kg
Maks. iş parçası ağırlığı (montaj)5 kg
İş parçası iç çapı20 – 100 mm
Maks. iş parçası genişliği50 mm
İş parçası dış çapıBelirtilmemiş

SICAKLIK ve ZAMAN KONTROLÜ

ÖzellikDeğer
Maks. ısıtma sıcaklığı200 °C
Sıcaklık kontrol aralığı40 – 200 °C
Sıcaklık adımı1 °C
Isıtma süresi5 – 1800 sn
Süre adımı1 sn
Termometre moduVar
Zaman moduVar

SENSÖR ve GÜVENLİK

ÖzellikDeğer
Sıcaklık ölçümüManyetik K tipi prob
Sensör sayısı1
Isıtma sonrası demanyetizasyonVar
Termal aşırı yük korumasıVar
Hata kodlarıVar

KULLANIM ve DONANIM

ÖzellikDeğer
Ekran7 segment LED
Soğutma sistemiZorlamalı hava soğutma yok
Güç ayarları%10 / %25 / %50 / %100
Uzaktan kumandaYok

GÖVDE ve TASARIM

ÖzellikDeğer
Gövde malzemesiÖzel PA, TPU kauçuk kaplamalı
RenkMavi / Koyu Gri

ÖNERİLEN UYGULAMALAR

Fanlar ve üfleyiciler
Kompresörler
Rulolu konveyörler
Rulman yatakları
Dişli kutuları
Elektrik motorları
Pompa sistemleri
Motorlar

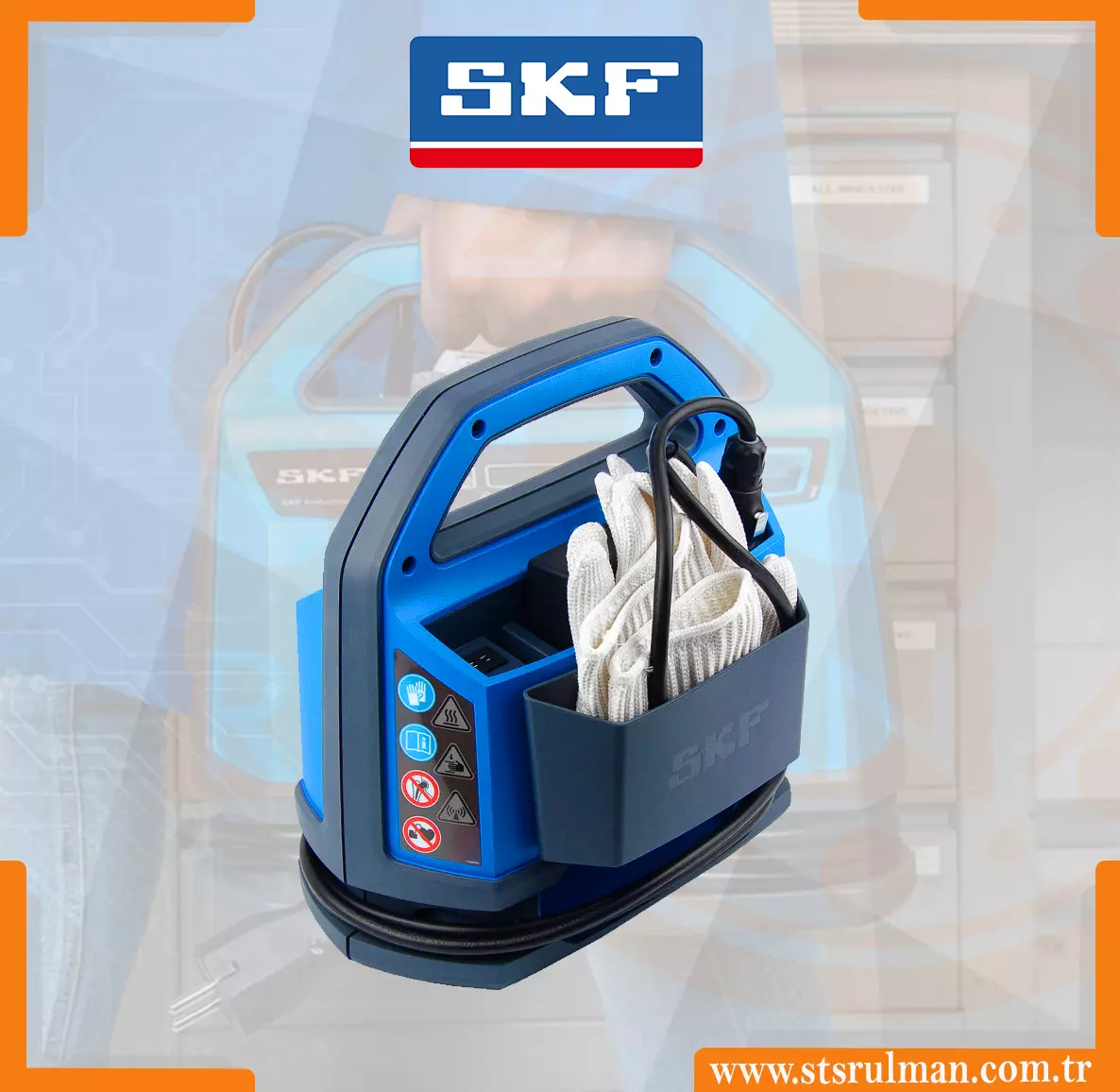

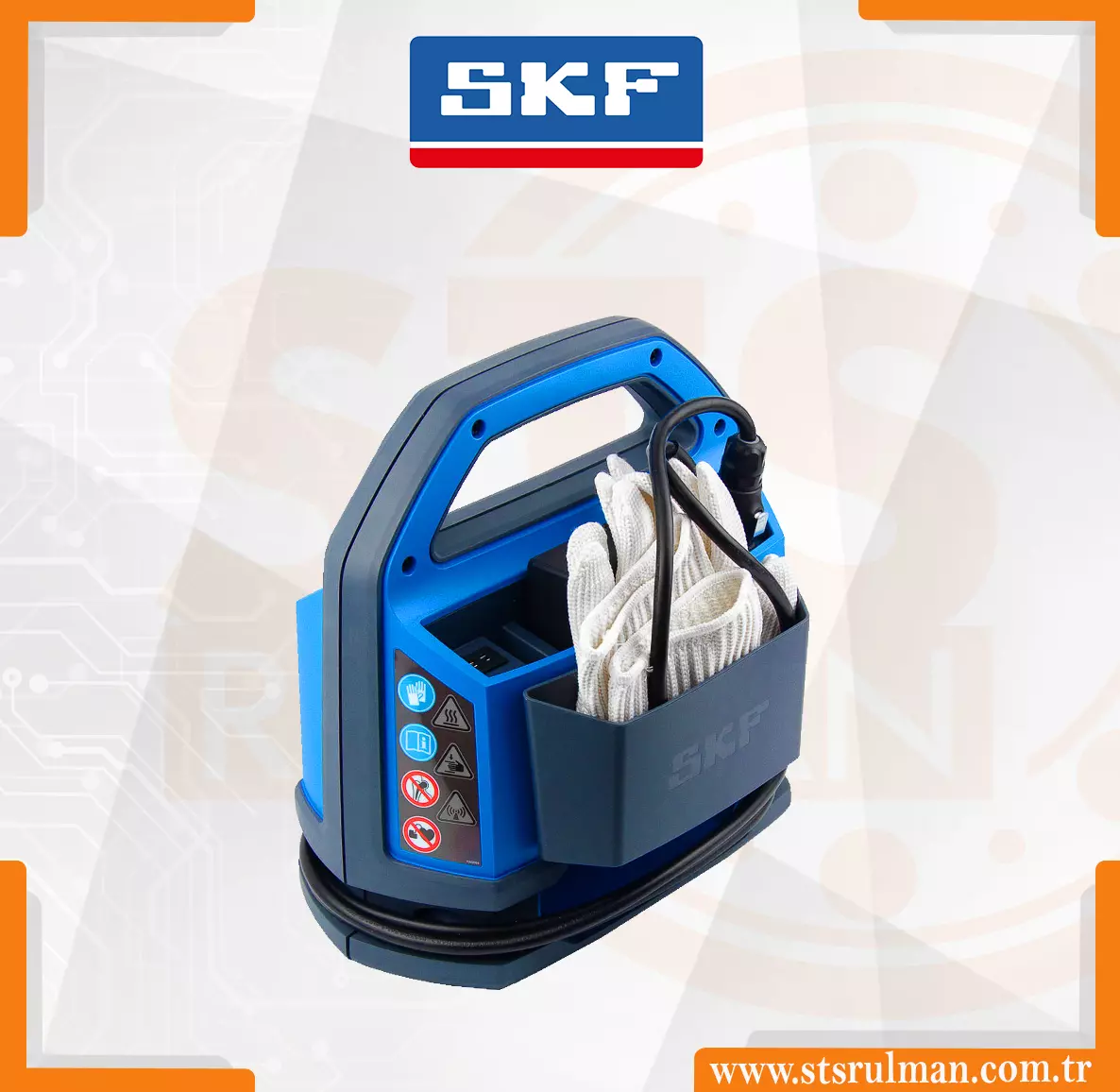

KUTU İÇERİĞİ

Ürün
Isıtıcı
Sıcaklık probu (TMBH 5-3)
1 çift ısıya dayanıklı eldiven (TMBA G11)
Rulman sehpası (TMBH 5-5)
Isıtma kelepçesi (TMBH 5-4)

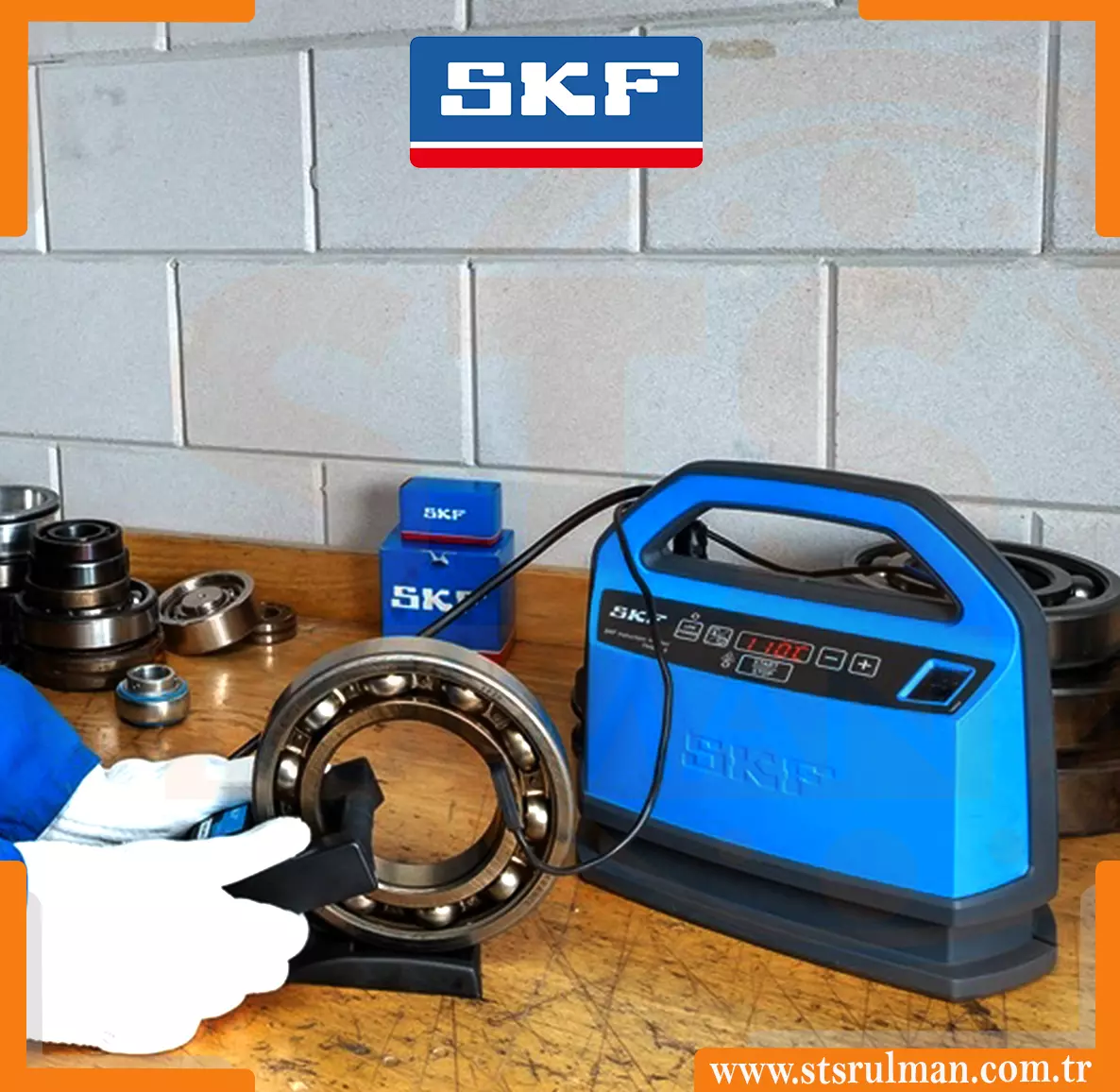

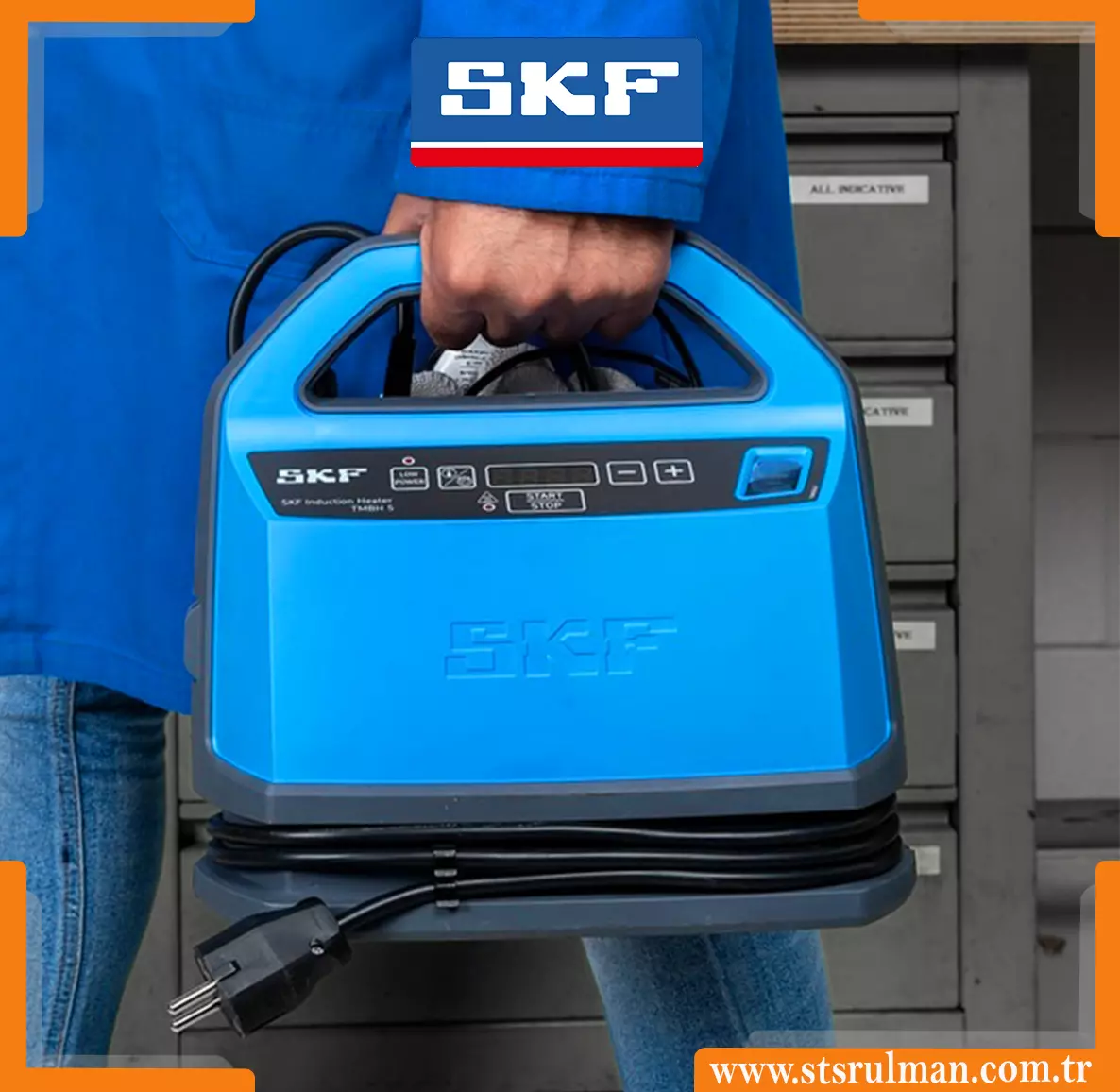

TMBH 5/120V Kompakt taşınabilir indüksiyon ısıtıcı Kompakt indüksiyon ısıtıcı TMBH 5, çalışma tezgahında, fabrika zemininde veya sahada dahil olmak üzere çok çeşitli durumlarda kullanılabilir. Tipik uygulamalar arasında dişli kutuları, pompalar, fanlar ve üfleyiciler üzerinde bakım ve servis işleri yer alır. Hafifliği ve dahili tutamağı, çeşitli yerlerde kullanılmasını sağlarken, bir arabanın bagajı veya küçük bir depo gibi kilitli bir yerde kolayca saklanabilir. Yenilikçi rulman ısıtma Son derece taşınabilir, kompakt ve hafif Otomatik sıcaklık izleme Her bileşen için ayrı bir bağlantı elemanı seçmeye gerek yok Gelişmiş orta frekanslı elektronik kullanımı Güç ayarları seçeneği Kullanıcı dostu kontrol paneli Sessiz çalışma
